HW-221V14F26-0202-3400CMM:
The CMM has been developed for the aerospace,avionics,instrumentation & control,defence and transportation markets,with applications that induce IFES,HUDs,fight controls,FADEC units,radars,missiles, electro-optical sighting systems,satellites,mobile radios,power supplies,UAVs and engine controls.It is also used engine controls.It is also used in a growing number of medical,and telecom applications.
Part numbering:
nn=number of LF contacts
| Type | L |
| Y | 3 |
| YL | 4.5 |
Calculation:
| A=nn-2 |
| B=A+7 |
| C=A+12 |
Refer to dimension table on cover page
FIXING HARDWARE FOR CMM 220 FEMALE:
FIXING HARDWARE FOR CMM 220 MALE
| REFERENCE | ASSEMBLY ON PCB | OVERLL DIMENSIONS | RECOMMENDATION |
| F21 | Straight on PCB | | F21 : CMM male : Y-YL-T-S-C (D-E :straight)
|
| F22 | Straight on PCB 0.8min/2max | | F22 :CMM male : Y-T-S-C (D-E :straight) F22H :CMM male : Y-T (D :straight)
|
| F22H | |||
| F24 | Straight on PCB 1.5min/4max |
| F26
|
| | F26/F23: CMM male : V-VL-R-S-C-E (D :90°)
|
MALE STRAIGHT ON CABLE P/N 30-33xx (solder or crimp):
| Loaded | Unloaded | Ampere | Cable A | ØB | ØC | Length D hole | Length E body | Length F conductor | Solder | Crimp by HX3 Hexagone size/Dies | Crimp by AF8 | ||||
| AWG 20 | AWG 18 | AWG 16 | AWG 14 | AWG 12 | |||||||||||
| 3305 | 30-3305 | 5A | × | 1,1mm | 1,65 | 6,2mm | 6,7mm | 4,5mm | OK | Hex.1,9 mm/C14923 | OK | ||||
| 3308 | 30-3308 | 8A | × | 1,35mm | 1,85 | 6,2mm | 6,7mm | 4,5mm | OK | Hex.1,9 mm/C14923 | OK | ||||
| 3310 | 30-3310 | 10A | × | × | × | 1,7mm | 6,2mm | 6,7mm | 6mm | OK | OK | ||||
| 3315 | 30-3315 | 15A | × | 2mm | 6,2mm | 6,7mm | 6mm | OK | OK | ||||||
| 3320 | 30-3320 | 20A | × | 2,6mm | 6,2mm | 6,7mm | 5,3mm | OK | OK | ||||||
| Loaded | Unloaded | Ampere | Cable A | ØB | ØC | Length D hole | Length E body | Length F conductor | Solder | Crimp by HX3 Hexagone size/Dies | Crimp by AF8 | ||||
| AWG 20 | AWG 18 | AWG 16 | AWG 14 | AWG 12 | |||||||||||
| 3305 | 30-3305 | 5A | × | 1,1mm | 1,65 mm | 6,2mm | 6,7mm | 4,5mm | OK | Hex.1,9 mm/C14923 | OK | ||||
| 3308 | 30-3308 | 8A | × | 1,35mm | 1,85 mm | 6,2mm | 6,7mm | 4,5mm | OK | Hex.1,9 mm/C14923 | OK | ||||
| 3310 | 30-3310 | 10A | × | × | × | 1,7mm | 6,2mm | 6,7mm | 6mm | OK | OK | ||||
| 3315 | 30-3315 | 15A | × | 2mm | 6,2mm | 6,7mm | 6mm | OK | OK | ||||||
| 3320 | 30-3320 | 20A | × | 2,6mm | 6,2mm | 6,7mm | 5,3mm | OK | OK | ||||||
CMM 220 SERIES in male & female styles for HF/HP contacts:
| CMM 220 Male & Female Special contacts only | Special contacts number | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | |
| Distance between axis | A | 4 | 8 | 12 | 16 | 20 | 24 | 28 | 32 | 36 | 40 | 44 | 48 | 52 | 56 | |
| B | 13 | 17 | 21 | 25 | 29 | 33 | 37 | 41 | 45 | 49 | 53 | 57 | 61 | 65 | ||
| Length in mm | C | 18 | 22 | 26 | 30 | 34 | 38 | 42 | 46 | 50 | 54 | 58 | 62 | 66 | 70 | |

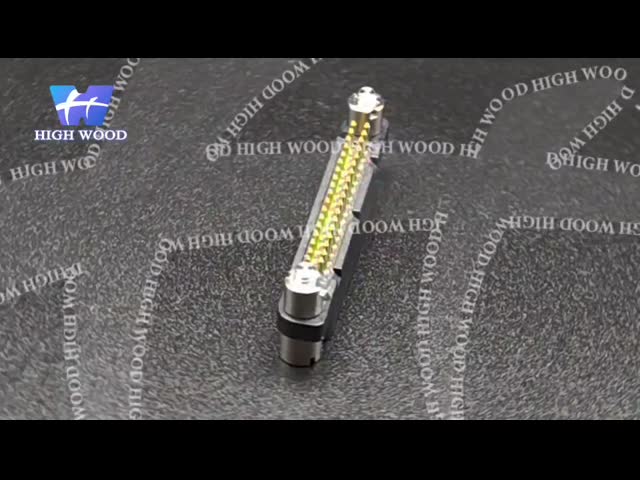

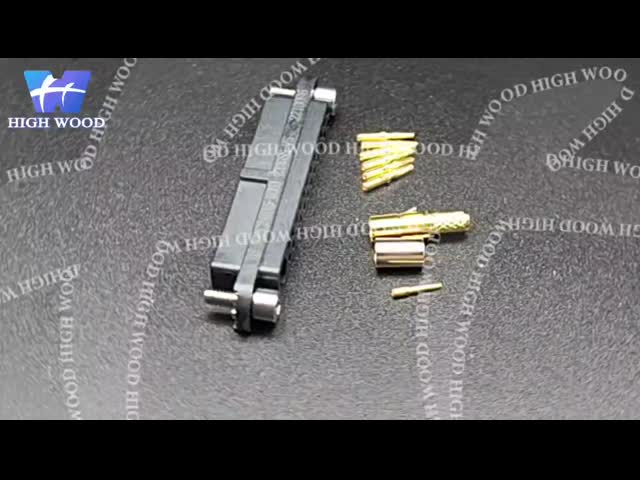

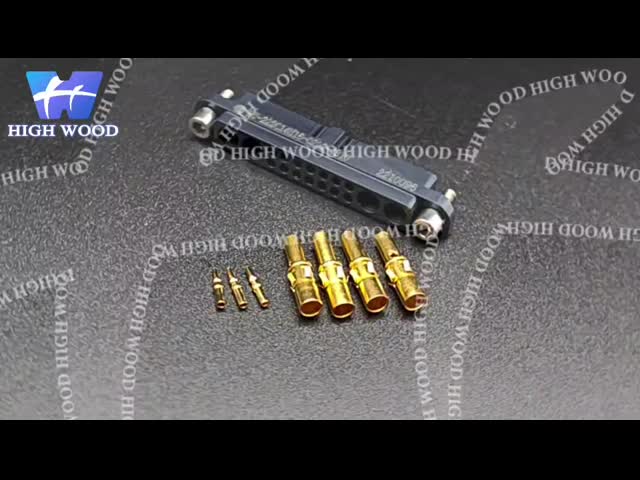

Product showing:
